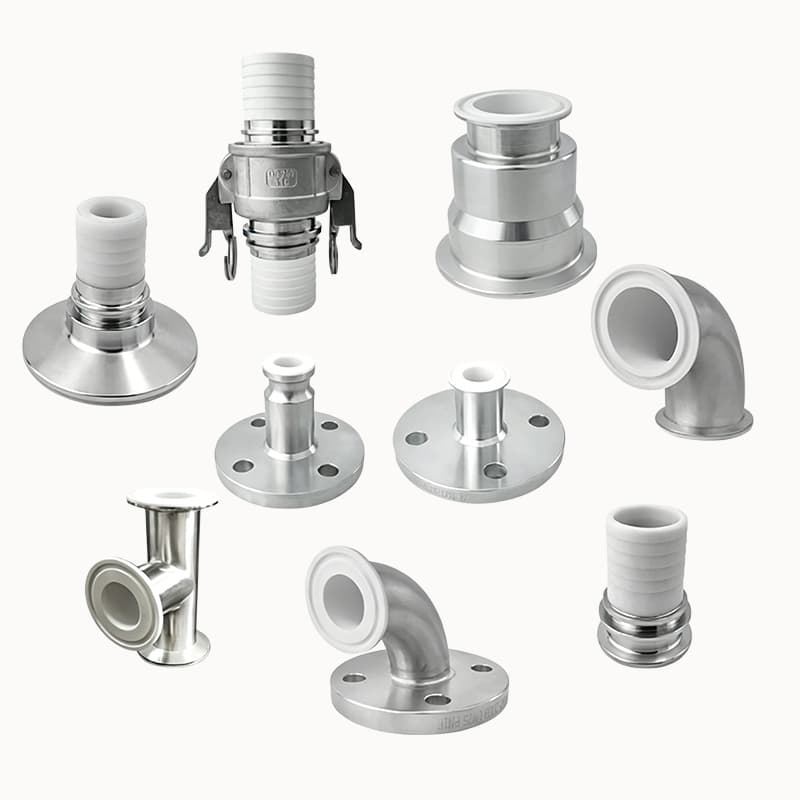

PTFE-lined TC clamp

Stainless steel health grade clamps pressure connector , used in the working temperature of -10C+100C , hydraulic power transmission or transport of water , gas , oil and other high pressure media , to ensure the circulation of liquid and transfer of liquid energy.

ID 282610 Images

Back to Line Request Quote

Description

Connection: Quick clamping hoop type.Scope of
application:wine,dairy,food, medicine,daily chemical,
water treatment, shipbuilding, construction machinery
a n d ot h e r f i e l d s . P a c k i n g : B u b b l e b a g +
cartonAdvantages and features of the gusset joint:1,
corrosion resistance:the use of SUS304 stainless steel
CNC precision car,acid and alkali resistance,corrosion
resistance,very hygienic,can rest assured use.2.Anti
leakage and anti-stripping: The stomach faste

Specification

Features

Applied to fields with high sanitary requirements such as chemical, food, gas, industrial, pharmaceutical, and bioengineering.

Technical

• Material: Stainless steel 316/304
• Size Range: 1/2” – 6” (DN15 – DN150)
• Temperature Range: -30°C to 150°C (-4°F to 302°F)
• Pressure Rating: Up to 10 bar
• Components: Two ferrules, gasket (silicone, NBR, or PTFE), clamp
• Operating Environment: Indoor, sanitary and clean fluid applications
